1kg payload collaborative 4 axis small academic robotic arm with kit
Product description:
Our 4 axis 1kg payload small robotic arm is mainly used for college or vocational education to learn robot construction, and use their knowledge to compile any code or instructions they want to achieve.
A complete set of spare parts can be provided to let students to assemble and learn about automatic transmission. And these spare pares can be also easily combined with vision system to realize more applications. And software can be provided to undertake the secondary developing, implement the applied system of particular function.
The robots arm can be built educational workstations that are equipped with handling modules, visual modules, stacking modules,Backgammon module, etc.This workstation allows you to learn the basic operation of mini robot, dragging teaching, robot trajectory controlling; vision integrated controlling etc.
Feature
1. The programming logic is simple,easy to learn and operate.
2. The software can be secondary developed
3. The repeatable positioning accuracy is less than±0.05mm.
4. A complete set of spare parts can be provided
5. Wireless tablet control.
6. Provide a complete set of educational workstations
Robot parameter
| products Name | 4 Axis Small Academic Robotic Arm |
| Working space | 540mm |
| Number of axis4 | Axis |
| Installation | Desktop |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Payload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Education,Academic research |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Auto parts fields
3. Academic research
4. 3C industray
5. Vocational education
6. Visual position detection
7. Palletizing
8. College

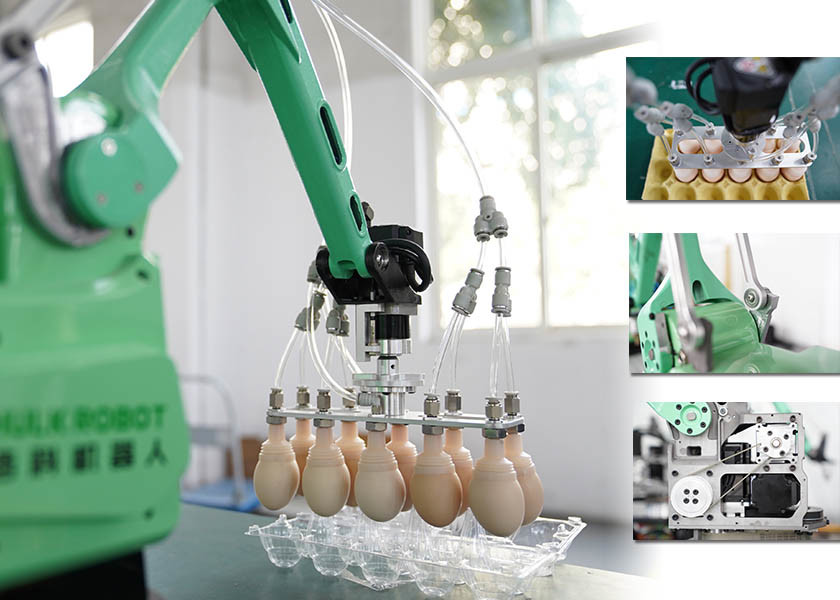

Detailed images
