University Payload 1kg 4 DOF 4 Axis Academic Robotic Arm

Product Categories
Suzhou Hulk Robot Co., Ltd.
Contact Now

University Payload 1kg 4 DOF 4 Axis Academic Robotic Arm

  • 1
  • 2

Brand Name : Hulk Robot

Model Number : HK5404

Certification : CE/ISO9001/IPMS

Place of Origin : Suzhou China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 200 sets per month

Delivery Time : 21 work days

Packaging Details : 1. Fill around the cardboard box with foam 2.Packing carton for 1 set : 680 * 640 * 380mm (L*W*H)

Product name : Mini 4 Axis Academic Robotic Arm For Learing Robotics In University

DOF : 4

Application : students, makers, universities and vocational schools

Purpose : Academic,Educational,Learning,Training

Color : Green or Customized

Net weight : 13 kg/28.67 lb

Gross weight : 20 kg/44.01 lb

Max Payload : 0.01~1kg

I/O : 5, can be extended by 16 I/O

Repeat position accuracy : ±0.05mm

Voltage rating : 220V

Contact Now

Mini 4 Axis Academic Robotic Arm For Learing Robotics In University



Product description

This Mini 4 Axis Academic Robotic Arm For Learing Robotics In University is designed with payload 1kg, arm span 540mm, repeat positioning accuracy 0.05mm, no control cabinet. Hulk robot is a 4 Axis Mini Robot Arm for learning robotics and mechanical automation. It can be applied to a variety of people, for example students, makers, universities and vocational schools. It can be controlled by Programming, APP, WiFi. We can offer a complete set of accessories for you to instruct students to assemble and learn about robotics & auotomation transmission. And it can be also easily integrated with vision system to realize more applications. And we could provide free software to you for your students to undertake the secondary developing, implement the applied system of particular function.

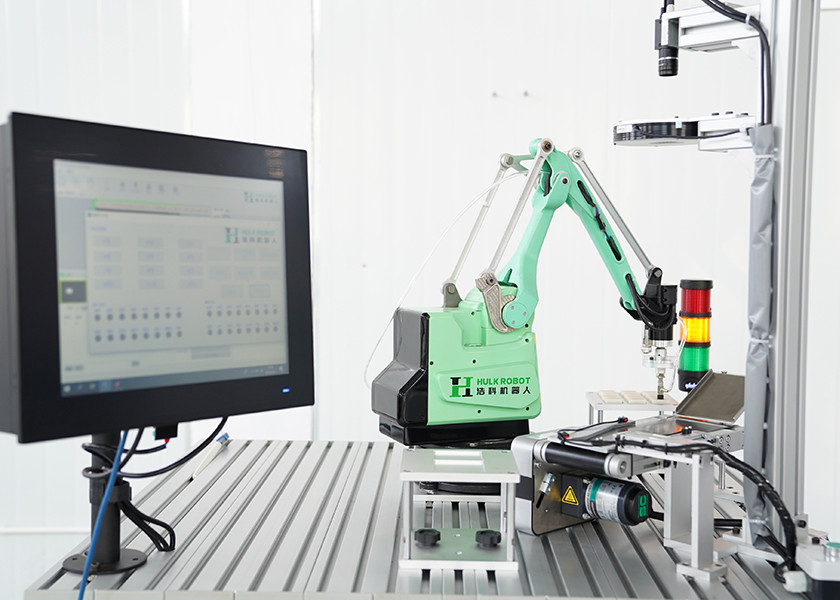

You can use our robots to build educational workstations that are equipped with handling modules, visual modules, stacking modules,Backgammon module, etc.This workstation allows you to learn the basic operation of minirobot, dragging teaching, robot trajectory controlling; vision integrated controlling etc.

Application

Universities

Vacation institues

Schools

Training institutions

laboratory



Technical parameter

Model HK5404
Maximum working radius 540mm
Number of axis 4
Installation Floor / desktop
N.W/ G.W 13kg/20kg
Repeat Positioning Accuracy ±0.05mm
Maximum Load 1kg
Power Consume 0.4KVA
Power supply Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating 220V 50 Hz
External communication WIFI/Ethernet
Application Industry, Academic, Teaching, Education
Safety standard ISO 9001-2015
Control software Hulkbot Studio
Drive System Steper motor
Working condition -10°C~60°C
I/O Input 5/Output 5,can be expanded by 16



Working rang of each axis

Axis Working Range Max Speed
Axis 1 ±160° 360°/s
Axis 2 -42°~85° 360°/s
Axis 3 -20°~100° 360°/s
Axis 4 ±165° 500°/s




Detailed images

University Payload 1kg 4 DOF 4 Axis Academic Robotic Arm
